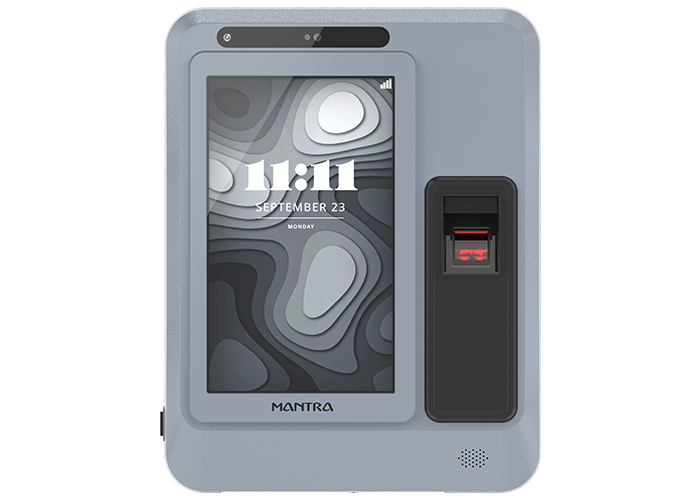

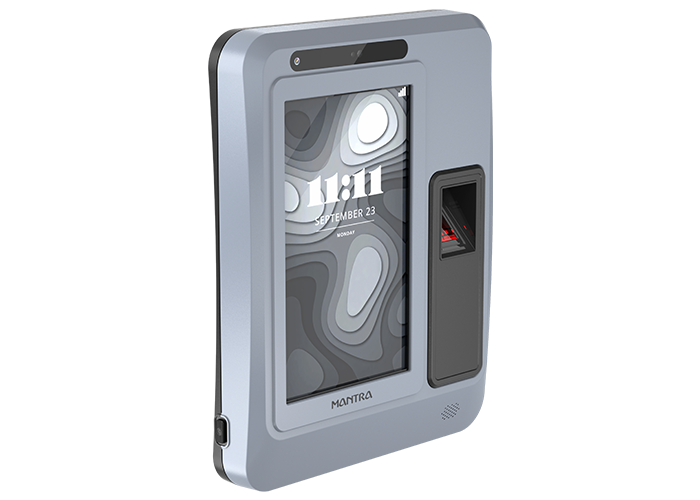

MBAS30 Aadhaar Enabled Biometric Attendance System

The MBAS30 is a compact Aadhaar-enabled biometric device built for efficient time-attendance and identity verification. Featuring STQC-certified fingerprint technology and robust connectivity options, it ensures UIDAI-compliant performance for various sectors.

Get In Touch

Our MBAS30 Aadhaar Enabled Biometric Attendance System

Built with an STQC-certified FAP10 optical fingerprint sensor and Android OS, the MBAS30 delivers real-time attendance tracking and eKYC functionality. It supports 4G, Wi-Fi, and Ethernet, making it versatile for fixed or mobile setups. The compact design with high accuracy makes it ideal for remote government offices, schools, and field-based applications.

Key Specifications

Hardware & System

CPU:

ARM Cortex A53 @1.5GHz Quad Core Processor

Memory:

2GB RAM + 32GB Flash

LCD:

7" TFT LCD with 1024x600 Resolution

Touch:

Scratch Resistant Multi-Point Capacitive Touch Screen with 6H Toughen Glass

Operating System:

Android 10

Front Camera:

2MP Fixed Focus

Audio:

High-Quality 1W Speaker for Announcements

RTC:

Yes

Object Detection sensor:

IR based Proximity sensor for device auto sleep & Wakeup

Control Buttons:

1x Power On/Off, 1x Reset Key

Operating / Storage Temperature:

0 Deg - 50 Deg C

Operating Humidity:

10%-90% RH (Non-Condensing)

Dimensions:

238 x 185 x 37mm

Weight:

Approx 0.8Kg

Certifications:

CE, RoHS, BIS, IP54

"Fingerprint Sensor - (Model: MFS110)"

Fingerprint Type:

Scratch Free Optical FAP10 Sensor

Fingerprint Image:

276 x 336 Pixels (Platen Area:- 14.0 mm x 17.0 mm)

Image Specs: 500DPI,

500DPI, 8 Bit Grayscale

Certifications:

CE, FCC, RoHS, STQC L1, UIDAI, FBI PIV, EN/IEC 62368-1 , IS13252 Part I

Interfaces

4G/3G/GPRS:

"2G GSM/GPRS/EDGE：850/900/1800/1900, 3G WCDMA：B1/B2/B5/B8, 4G FDD: B1/B3/B5/B7/B8/B38/B40/B41, 4G TDD:All Band"

Wi-Fi:

IEEE 802.11 a/b/g/n

Ethernet:

10/100 Mbps

SD Card:

MicroSD Card (Supports up to 64GB)

Bluetooth:

BT & BLE 4.0

GPS:

16 Channel NMEA Compliant with Flex Antenna, AGPS Supported

SIM Socket:

2 x Micro SIM Socket

DC Jack:

1 x DC Power Input

Micro USB:

1 Micro USB Port for PC Connection as debug port

USB 2.0:

USB2.0 Type A

Electrical

Power Adaptor:

Input AC: 90~265V, 50Hz ; Output DC: 12V/2.0

Battery Capacity:

Li-Ion 6000 mAH Rechargeable & Replaceable Battery
