Facial Authentication Terminal

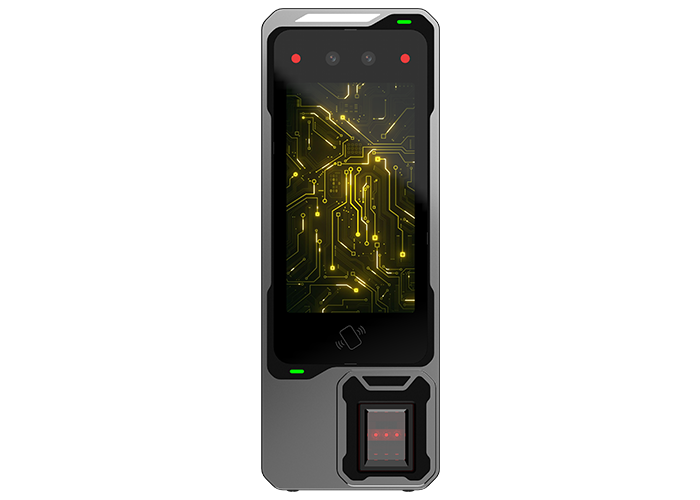

BioNIC FP6 Pro Intelligent Security

Experience the next generation of biometric access. A high-speed, contactless terminal featuring dual RGB+IR cameras and a FAP20 fingerprint sensor for elite protection.

Face Recognition Fingerprint FAP20 IP65 Rated Touch Display Linux OS Contactless Attendance

Get a Quote Download PDF

IP65 Certified

FAP20 Sensor

Dual Camera RGB + IR

Key Highlights

Ultimate Security Revealed

Elegant design meets cutting-edge technology. BioNIC FP6 Pro is an ultra-slim device featuring a vibrant touch interface and wide dynamic camera for swift, secure recognition.

Dual Modality

Accurate Detection

The BioNIC FP6 Pro employs advanced facial and fingerprint detection algorithms to identify employees accurately and efficiently, ensuring quick check-ins.

Elite Standard

High-Security Standards

Enhances facility security by preventing fraudulent attendance practices and ensuring only registered personnel can access restricted areas.

Hygienic Workplace

Contactless & Hygienic

Promoting a safe workplace, the device's contactless facial verification minimizes physical interaction, maintaining high health standards.

Touch Interface

User-Friendly Usage

With an intuitive setup and vibrant 5-inch touch display, the BioNIC FP6 Pro is designed for universal ease of use with minimal training.

ERP Ready

Seamless HR Integration

Effortlessly integrates with existing HR software, enabling automatic synchronization of attendance data to simplify payroll management.

Rugged Build

IP65 & IK08 Rated

Fully sealed enclosure resistant to water, dust, and physical impact, ensuring reliable performance in demanding industrial environments.

Hardware Power

Engineered for Reliability and Speed

Advanced internal components meeting modern certification standards for secure facility management.

Processor

Arm A7 Dual

Dual Core Cortex-A7 at 1.5GHz with 1.2T FLOPS NPU for rapid AI processing.

Recognition

< 200 ms

Ultra-fast matching time for seamless high-traffic pedestrian access.

Users

12k Finger

Large database capacity supporting up to 6k face and 12k fingerprint templates.

Memory

2GB RAM

High-speed DDR4 memory with 16GB eMMC storage for extensive logs.

Logs

1 Million

Substantial log capacity to keep historical access records secure.

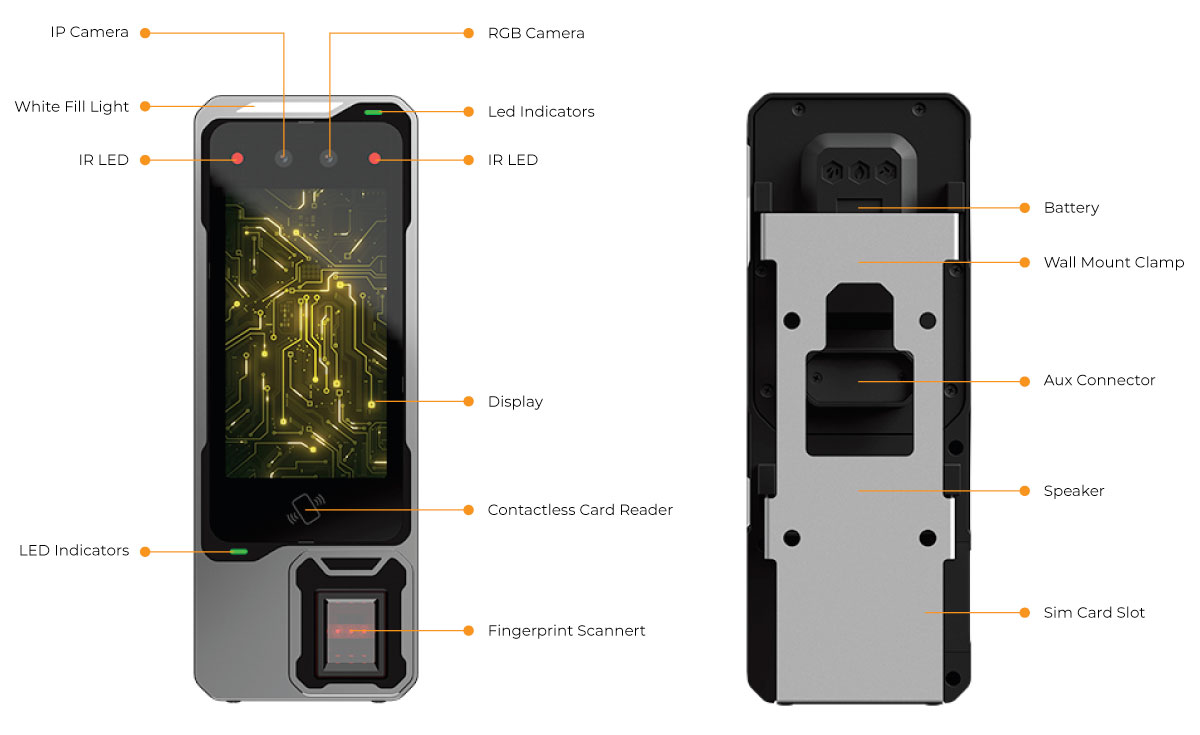

Architecture

At A Glance

Experience the ultimate in security through Facial & Fingerprint technology.

Business Solutions

Discover Our Solutions

BioNIC FP6 Pro powers identity and access programs across corporate, government, and educational sectors.

Biometrics | AI

Face Recognition System

Contactless terminal for secure and accurate visitor and employee identification.

Operations | HR

Attendance Management

Automated tracking and seamless integration with payroll for error-free workforce management.

Security | IoT

Access Control System

Centralized monitoring and secure entry for high-stakes corporate and industrial facilities.

Specifications

Technical Details

Full technical specifications for system integrators and IT managers.

Hardware & System

CPU

Dual Core Arm Cortex A7, Max 1.5GHz

NPU

1.2T FLOPS

RAM Memory

2GB DDR4

Storage Memory

16GB EMMC

Operating System

Linux OS, Kernel Ver. 4.19.111

Log Capacity

1M Records

Face Database

2K / 4K / 6K

Fingerprint Database

6K / 12K

Display & Camera

Display

5 Inch Vertical, 720x1280 Res

Touch

Multi Point Capacitive

Camera Type

Dual RGB and Near Infrared (RGB+IR)

Pixel Resolution

2 Million WDR

Recognition Time

< 200 ms

Detection Distance

Up to 120 cm

Accuracy User

> 99.8%

Liveness Detection

Supported

Interfaces & Connectivity

Network Module

1x RJ45

Wi-Fi

Supported

RS485 / RS232

1 x RS485, 1 x RS232

UART

2 x UART

Wiegand

1 x Input & 1 x Output

Relay Interface

2 x Relay

Battery Back-Up

1000mAh Li-ion Rechargeable

4G Module

Optional (Nano SIM slot)

Physical & Environmental

Fingerprint Sensor

FAP20 Optical Sensor

Smart Card Reader

ISO14443 Type A/B, Mifare (Optional)

Dimensions

229mm x 85.3mm x 38.5mm

Weight

~ 500 grams

Operating Temp.

-10 ^oC ~ 60 ^oC

Certifications

CE, RoHS, BIS, IP65, IK08

Resources

Everything You Need to Deploy

Product Brochure

Full product brochure with technical specs and application overview for FP6 Pro.

Download PDF

Technical Support

Raise a support ticket or connect with our face recognition system engineers.

Get Support
