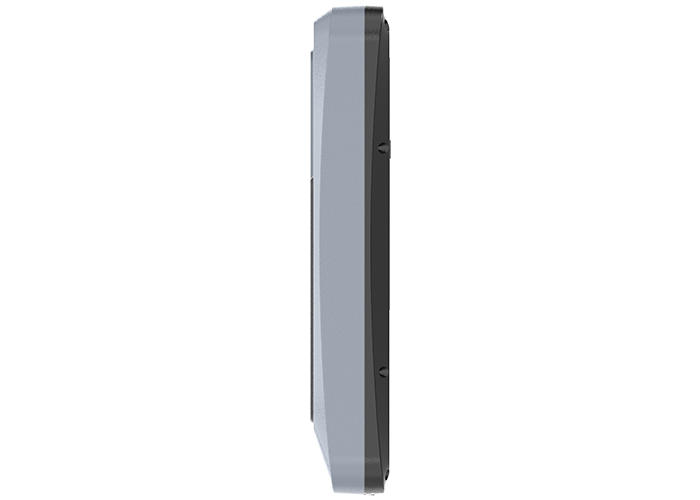

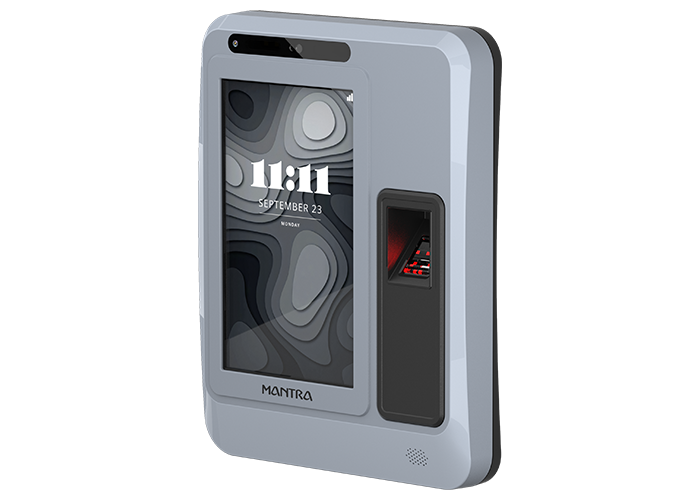

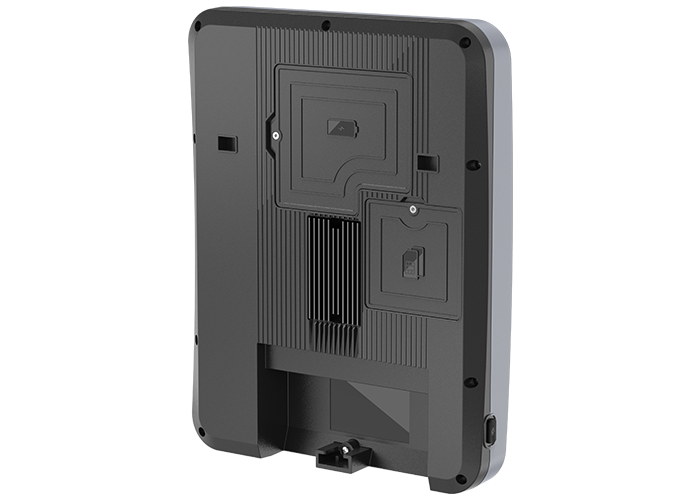

MBAS40 Multi-Modal Biometric Device for AEBAS

CPU:

ARM Cortex A53 @1.5GHz Quad Core Processor

Memory:

4GB RAM + 32GB Flash

LCD:

7" TFT LCD with 1024x600 Resolution

Touch:

Scratch Resistant Multi-Point Capacitive Touch Screen with 6H Toughen Glass

Operating System:

GMS Certified Android 14

Audio:

High-Quality 1W Speaker for Announcements

RTC:

Yes

Object Detection sensor:

IR based Proximity sensor for device auto sleep & Wakeup

Control Buttons:

1x Power On/Off, 1x Reset Key

Operating / Storage Temperature:

0 Deg - 50 Deg C

Operating Humidity:

10%-90% RH (Non-Condensing)

Dimensions:

238 x 185 x 37mm

Weight:

Approx 0.8Kg

Certifications:

CE, RoHS, BIS, IP54

Fingerprint Type:

Scratch Free Optical FAP10 Sensor

Fingerprint Image:

276 x 336 Pixels (Platen Area:- 14.0 mm x 17.0 mm)

Image Specs: 500DPI,

500DPI, 8 Bit Grayscale

Certifications:

CE, FCC, RoHS, STQC L1, UIDAI, FBI PIV, EN/IEC 62368-1 ,IS13252 Part I

Camera Resolution:

8 Mega Pixel

Camera Focus:

Auto Focus 10-150cm

Camera Illumination:

While LED Auto ON-OFF based on ambient Lighting

Camera Interface:

MIPI interface with OS control

Contactless Card (Optional):

"ISO14443 Type A/B Cards, MIFARE Classic 1K/2K/4K MIFARE DESFire Light 1K MIFARE DESFire EV1/EV2 4K MIFARE Plus S 2K NTAG"

4G/3G/GPRS:

"2G GSM/GPRS/EDGE：850/900/1800/1900, 3G WCDMA：B1/B2/B5/B8, 4G FDD: B1/B3/B5/B7/B8/B38/B40/B41, 4G TDD:All Band"

Wi-Fi:

IEEE 802.11 a/b/g/n

Ethernet:

10/100 Mbps

SD Card:

MicroSD Card (Supports up to 256GB)

Bluetooth:

BT & BLE 5.0

GPS:

16 Channel NMEA Compliant with Flex Antenna, AGPS Supported

SIM Socket:

2 x Micro SIM Socket

SAM Socket:

2 x SAM Card (As per ISO7816 standard)

DC Jack:

1 x DC Power Input

Micro USB:

1 Micro USB Port for PC Connection as debug port

USB 2.0:

USB2.0 Type A

Power Adaptor:

Input AC: 90~265V, 50Hz ; Output DC: 5V/3.0

Battery Capacity:

Li-Ion 6000 mAH Rechargeable & Replaceable Battery
