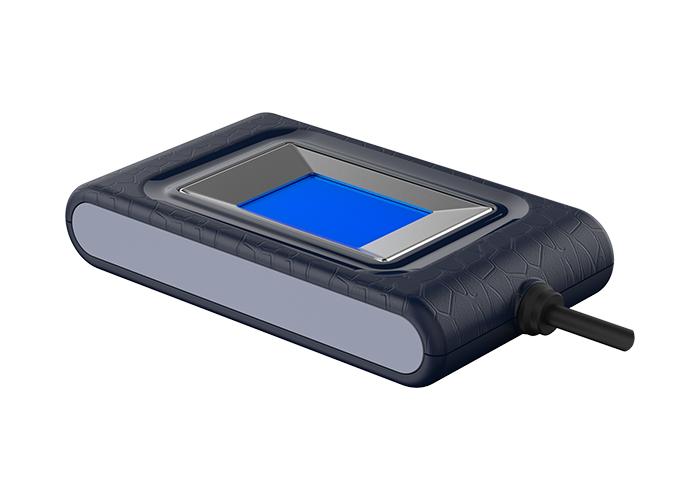

MAPRO OX is an easy-to-use optical fingerprint scanner, devised smartly utilizing the state-of-the-art optical technology for greater accuracy and a high level of performance. It is a compact and portable fingerprint scanner, which can be carried efficiently to any place.
Get In Touch Download BrochureOur optical fingerprint scanner is a compact and portable device that is easy to carry anywhere, anytime for secure identity verification and authentication project requirements. The device offers a reliable, accurate, and ergonomic identification solution to meet the security needs of the projects. MAPRO OX is an easy-to-use and easy-to-install single-mode biometric optical fingerprint device.
Designed with advanced optical fingerprint technology, MAPRO OX offers excellent image resolution and accuracy. Moreover, the scratch-resistant sensor surface protects our optical fingerprint scanner from external damages, providing it a longer lifespan. MAPRO OX is devised smartly with MINEX compliant extractor for better biometric fingerprint matching.
| Parameters | Specification |
|---|---|
| Fingerprint Sensor | : Optical Sensor |
| Spatial Resolution | : 500 DPI +/-2% |
| Sensing Area | : 12.8 mm x 18 mm |
| Image Size | : 256 x 360 Pixels |
| Image Grayscale | : 256 (8 - Bit Gray Level) |
| Sensing Area Hardness | : 8H |
| Maximum Acquisition Time (Placement to Template) | : < 2 sec |
| Approx Dimensions (L x W x H) | : 58 x 33 x 11 mm |
| Approx Weight | : 0.040 Kg |
| Parameters | Specification |
|---|---|
| Operating Voltage | : 5V +/- 5% (USB Powered Device) |
| Operating Current (max) | : 110 mA |
| Stand by Current (max) | : 66 mA |
| Interface | : USB 2.0(Wire to Board connector or FPC connector) |
| Parameters | Specification |
|---|---|
| Operating Temperature | : 0 to 50 degC |
| Storage Temperature | : 0 to 50 degC |
| Humidity (Operating / Storage) | : < 90% RH, Non-condensing |
| Parameters | Specification |
|---|---|
| Biometric Data Interchange Format | : ISO 19794-2 for minutiae & ISO 19794-4 for Image Template |
| Environmental, Health and Safety | : RoHS Certification |
| BIS | : IS 13252 (Part 1) |
| Safety | : IEC60950 |
| EMI / EMC Compliance | : CE & FCC Class A |
| *FBI PIV Certification | : Compliance |
| *STQC Certification | : Yes |
| IP Rating | : IP67 (Platen Area) |
| Device Driver | : WHQL Certified |
| OS Supports | : Window x86 & x64, Linux, Android |
