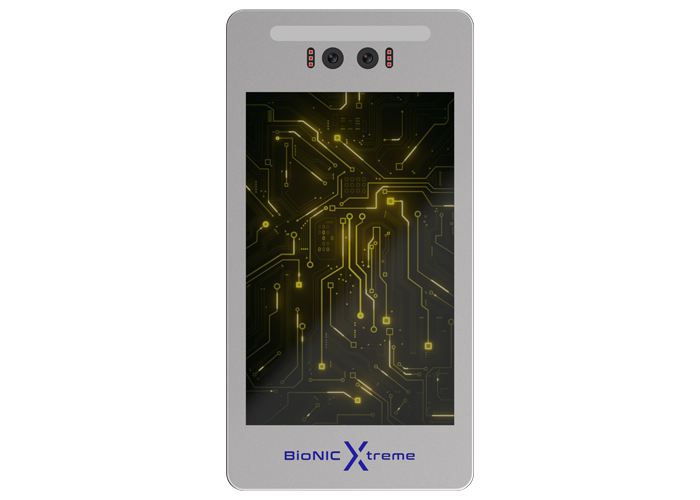

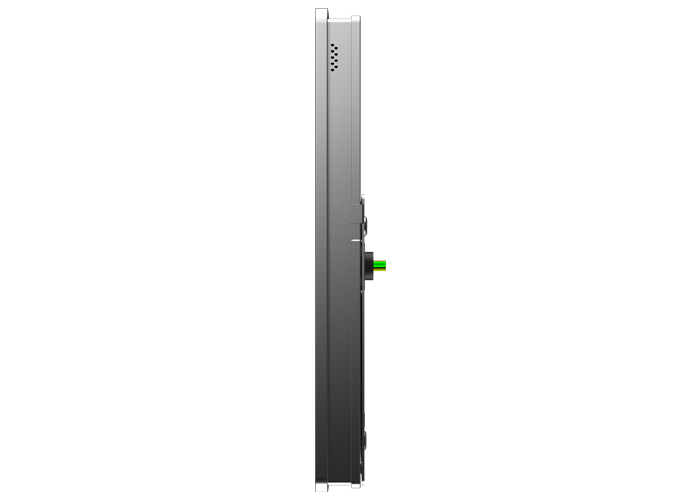

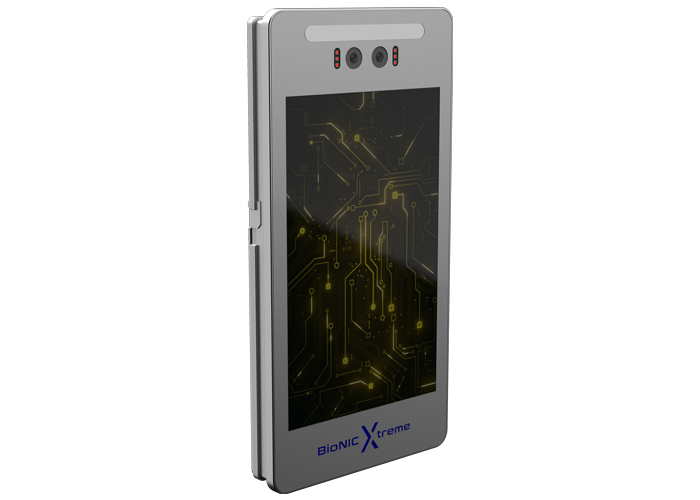

BioNIC Xtreme XII Rugged Multi-Biometric Terminal

The BioNIC Xtreme XII is a high-performance rugged biometric device designed for outdoor deployments. With L1 fingerprint sensor, facial recognition, and IP65 housing, it's built to withstand extreme conditions.

Get In Touch

Our BioNIC Xtreme XII Biometric Terminal

Featuring a robust aluminum alloy body, military-grade dust and water resistance, and triple biometric authentication (fingerprint, face, smart card), the device is perfect for defense, border control, and large-scale verification.

Applications

Border and Defense Checkpoints

Aadhaar-based Attendance

Construction & Mining Sites

Outdoor KYC Points

Disaster Relief Camp Monitoring

Key Specifications

Hardware & System

CPU:

2.2GHz Quad core ARM Cortex-A73 and 1.8GHz dual core Cortex-A53

GPU:

ARM G52 MP4 GPU

Memory (RAM + Storage):

2GB + 16GB

Display & Touch

Display:

10.1 Inch, 800X1280 Resolution, Full view IPS TFT Display

Touch:

Multi point capacitive touch screen with tuffen glass

Interface

Network Module:

1x RJ45, 10M/100M

Wi-Fi / BT:

Supported

Microphone:

Diameter of Microphone ~1cm

Speaker:

8O/2W * 1 with 50cm cable.

RS232:

1 x RS232

RS485:

1 x RS485

USB OTG:

USB type A * 1

Wiegand Interface:

1 x Output ; 1 x Input

Relay Interface:

2 x Relay (NC, NO, COM)

Power Jack:

DC 12V/2A

Supervised Input(Configurable):

1. Egress Switch, 2. Fire Alarm , 3. Emergency Switch

Supervised Output (Configurable):

1. Alarm

RTC:

Supported

PoE:

Supported

4G Module (Optional):

Nano SIM card slot

Smart Card Reader

Contactless Card (Optional):

ISO14443 Type A/B Cards, Mifare Classic / Desfire

Contact Card Slot (Optional):

ISO 7816 A/B/C, Supported

Binocular Wide Dynamic Camera (RGB + IR)

Camera Type:

Dual RGB and Near Infrared Camera

Pixel Resolution:

2M (1920 x1080)

Frame Rate:

30 FPS

Minimum Illumination:

= 0.1 LUX

Dynamic Range:

= 45dB Linear & = 100 dB HDR supported for various light environment

Focus Distance:

30 -150 cm

White Balance:

Auto

Photo Flood Light:

Visible & IR dual Flood Light

Support:

Live Face Detection

Functions/Features

Face Detection:

Supported Face Recognition with Mask

Face Database Capacity:

50,000

Users & Log Capacity:

1M

1:N Face Recognition:

Supported (5K,10K, 20K, 50K)

1:1 Face-matching:

Supported (50K)

Stranger Detection:

Supported

Face Recognition Accuracy:

Normal Light Condition > 99.9%/ External Light Condition > 95%

Liveness Detection:

Supported

Recognition Speed:

300 ms

Software

Operating System:

Customized Android

SDK:

Appropriate SDK for all accessories to be provided

General Parameter

Casing:

Die-Casted

Protection Grade:

Dust & Water Proof

Operating Temperature:

-10℃~60℃

Storage Temperature:

-20℃~60℃

Operating Humidity:

10%-90% RH (Non-Condensing)

Dimensions:

~313 X 161 X 29 mm

Weight:

~1.5 Kg

Mounting Type:

Wall-mounted /Pole-Mounted/e-Gate

Certifications

Certifications:

CE, RoHS, IP65, FCC, UL, IK09, EN , IEC
