MOXA7

MOXA7
Portable Biometric Device For Enrollment, Authentication & Identification

Mantra’s MOXA7 is a portable and reliable biometric device for identification. The device has fingerprint scanner along with camera scan functionality for barcode and QR code.

Get In Touch Download Brochure

Our MOXA7 Portable Biometric Device

Mantra's MOXA7 device is a portable biometric tablet that is packed with two significant functionalities, fingerprint recognition and barcode scanning to meet diverse biometric enrollment and identification project requirements. With a stunning 7-inch display, the device is highly rugged, reliable and accurate. MOXA7 also supports various communication methods, including GPRS, 3G, 4G, WIFI, Bluetooth, Ethernet and USB.

With IP65 water and dust proof capability, MOXA7 has met IEC sealing standard. Thus, the user can efficiently operate the device with hand held strap which comfortably gives the support to handle the device. MOXA7 includes an amazing 5 Megapixel auto-focus camera with the flashlight for clear face capture and it works very seamlessly to scan Barcodes & QR code.

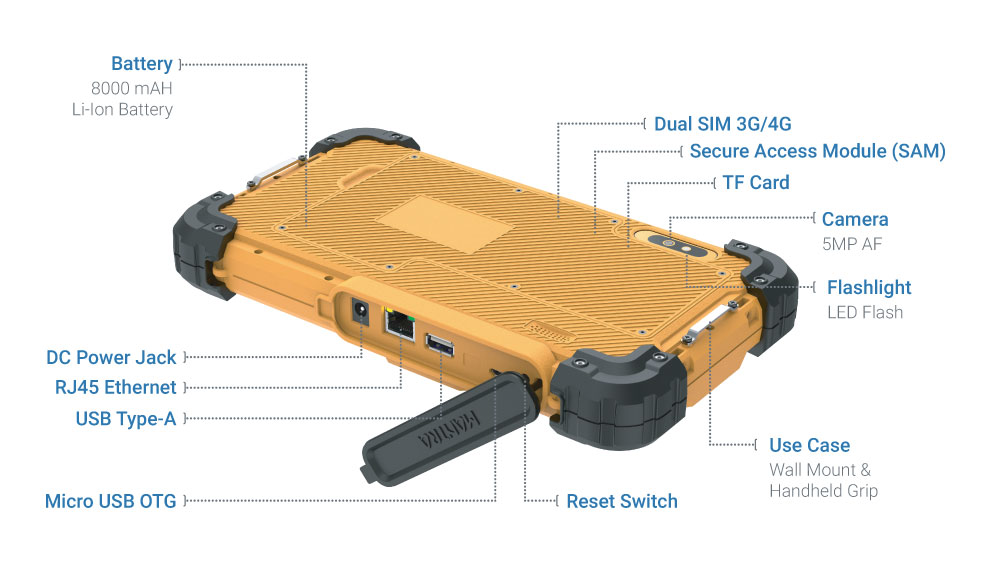

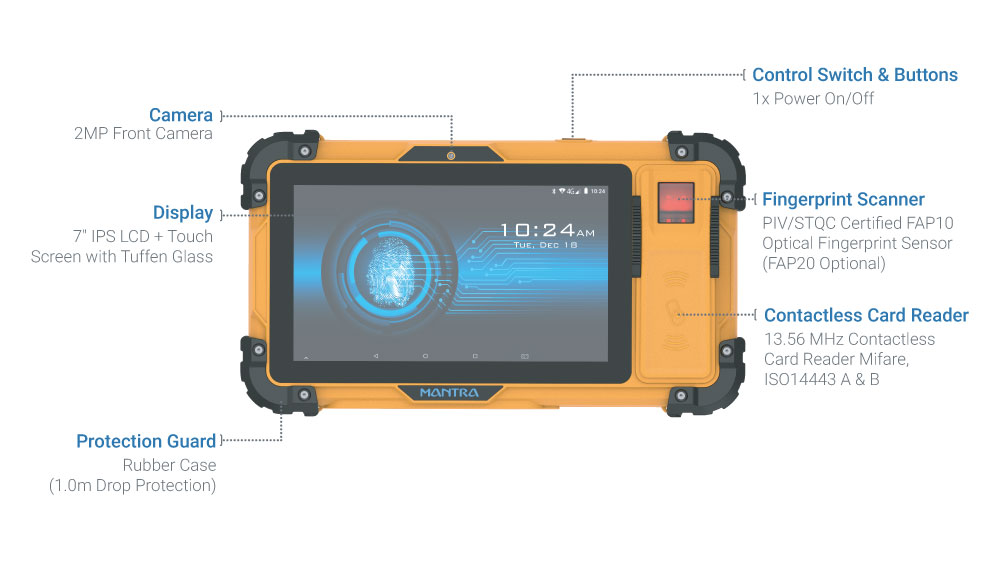

Parameters Specification
Dimensions: 247 x 138 x 48 mm
Weight: Approx 0.750 kg
CPU: 1 GHz, 64-bit ARM Cortex-A Quad-Core Processor
RAM: 1GB RAM
Storage: 8 GB Flash Memory, Supports Micro SD Card up to 32 GB
Display: 7" IPS LCD with 1024x600 Resolution, Multi Point Capacitive Touch Screen with Tuffen Glass
Camera: 2MP Front Camera & 5MP Auto Focus Rear Camera with Flash LED
Operating System: Customized Google GMS Android OS
Control Switch & Buttons: 1x Power on/off
Fingerprint Scanner: PIV/STQC Certified FAP10 Optical Fingerprint Scanner (FAP20 Optional)
Reader: 13.56 MHz Contactless Card Reader Mifare, ISO14443 A & B
Barcode & QR Code: 1D & 2D Supported Camera Based Barcode & QR Code Scanner
Waterproof & Dustproof: IP65
Shockproof: 1.0M Falling Rugged Device
Use Case: Wall Mount & Handheld Grip
AC/DC Adapter Input AC: 100~240V, 50Hz ; Output DC: 5V/3A
Battery Pack: Li-Ion 8000 mAH Battery
Accessories: Power Adaptor, Wall Mount Clamp, Optional Hand Strap and Shoulder Strap
Parameters Specification
Operating Temperature: 0 - 50 Deg C
Storage Temperature: 0 - 50 Deg C
Humidity: Non-Condensing 10% - 90% RH
Parameters Specification
3G / 4G: 2G (900/1800), 3G (B1/B8), 4G (B3/5/40)
Wifi: IEEE 802.11b/g/n
Bluetooth: Bluetooth 2.1
GPS: 16 Channel NMEA Compliant
Ethernet: 10/100 Mbps
USB: USB2.0 Type A and Micro USB OTG Supported
Micro SD: 1 x Micro SD Card Slot Support upto 32GB
SIM Socket: 2 x SIM Socket
DC Jack: 1 x DC Power Input
SAM Socket: 1 x SAM Card
Parameters Specification
Certifications: CE, RoHS, BIS, IP65
Specification
