MFS110

Mantra MFS110
Secured Fingerprint Reader

Secure and durable Fingerprint reader built around fingerprint sensor for error-free scanning under varying fingerprint conditions.

Get In Touch Download Brochure

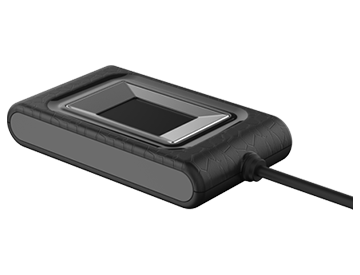

Our MFS110 Secured USB Fingerprint Reader

The Mantra MFS110 fingerprint reader better than traditional devices in its class, delivering Crypto operation with secure memory, and precise biometric matching makes it perfect for ID verification, and IT security. Our fingerprint reader is a secured, rugged fingerprint scanner that ensures consistent image quality and precise results. This fingerprint reader designed for many biometric-based identification applications. It is certified as FBI PIV-071006 for compliant fingerprint scanner. This device has IP54 certification, which indicates that it is protected from dust and splashing water.

The scanner is based on optical technology, which assures high-quality fingerprint scanning even when dusty, dirty or rough fingers are scanned. Developed for law enforcement, IT security, border administration, and national ID programs. Its highly sophisticated crypto operation and ergonomically design makes it excellent performing and secured biometric device in the industry for field operations.

Specification

MFS110 feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.

Parameters Specification
Fingerprint Sensor Type: Optical Sensor
Spatial Resolution: 500 DPI +/- 2%
Platen Area: 14.0 mm x 17.0 mm
Image size: 276 x 336 Pixels
Image Grayscale: 256 (8 - Bit Gray Level)
Light Source: Red LED
Maximum Acquisition time (Placement to Template): < 2 Sec
Approx. Dimension (L x W x H): 61(L) x 91(W) x 54(H) mm
Approx. Weight: 0.140 kg
Capture mode: Auto capture with built-in quality check(incorporates NIST quality considerations)
Parameters Specification
Crypto operation: Hardware base RSA2048 Key Generation, AES-GCM-256, SHA-256, TRNG support
Secure Memory: TEE support by the device. Secure memory support key wraping feature
Secure Boot: Secure boot support by the device
Parameters Specification
Operating Voltage: 5V +/- 5% (USB Powered Device)
Operating Current : < 90 ma
Stand by Current: 50 mA
Interface: USB 2.0
Parameters Specification
Operating Temperature : 0 to 50 °C
Storage Temperature : 0 to 50 °C
Humidity (Operating / Storage) : < 90% RH, Non-condensing
Parameters Specification
Biometric Data Interchange Format: ISO 19794-2 for minutiae & ISO 19794-4 for Image Template in Encrypted PID Data Block
Environmental, Health and Safety: RoHS
Safety: EN/IEC 62368-1, IS 13252 (Part 1)
EMI / EMC Compliance: CE, FCC Part 15B
Image Quality Complaince : FBI PIV *, STQC *
IP Rating: IP54
Device Driver: WHQL certified
Operating System: Windows x86 & x64, Linux, Android
*Certification under process
