MFS100V2-Module

MFS100V2 Module : MOPv1.2

MFS100 V2 is an elegant fingerprint recognition module used for the Identification, verification and authentication process of an individual.

Get In Touch Download Brochure

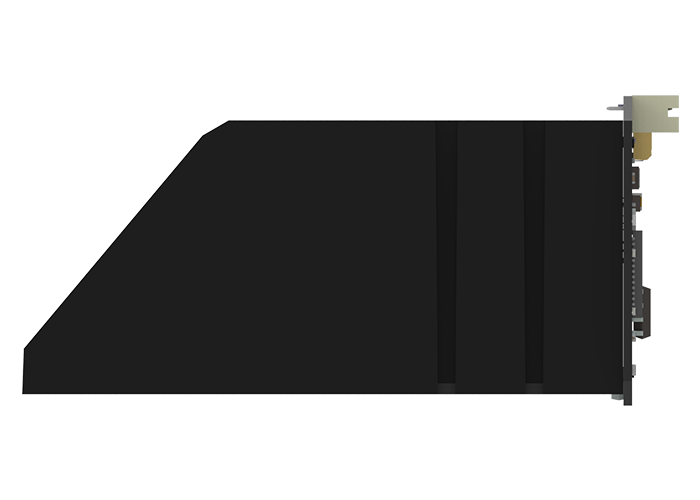

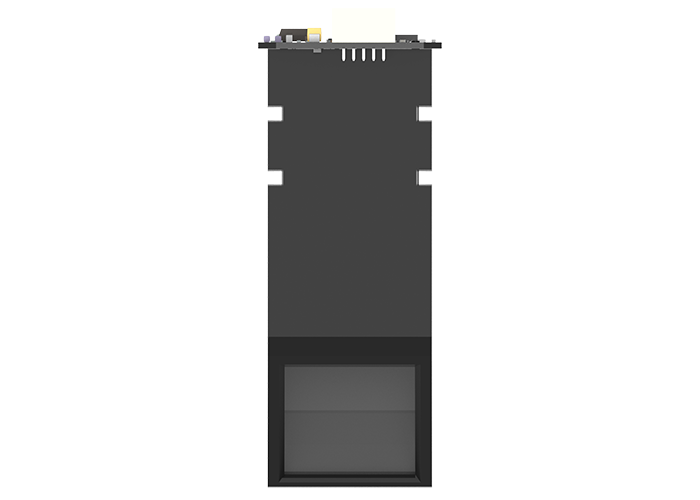

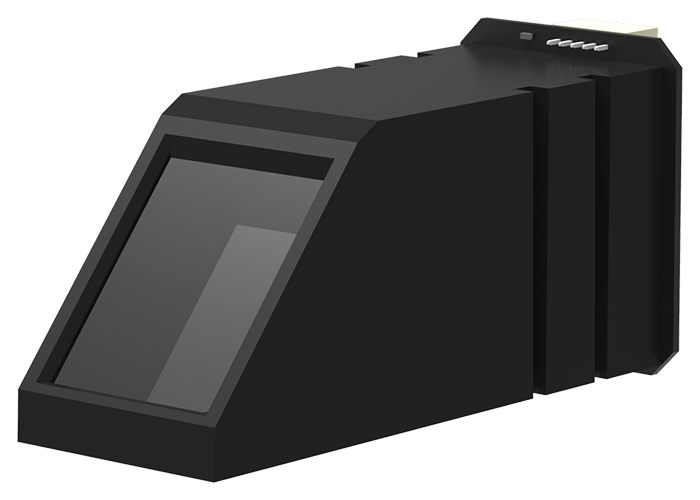

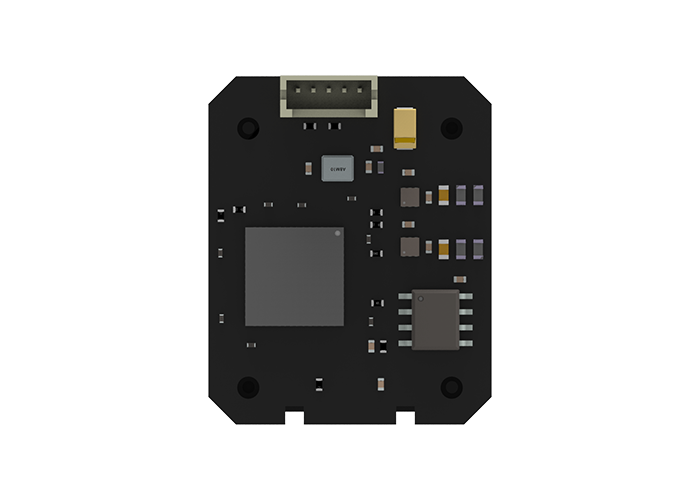

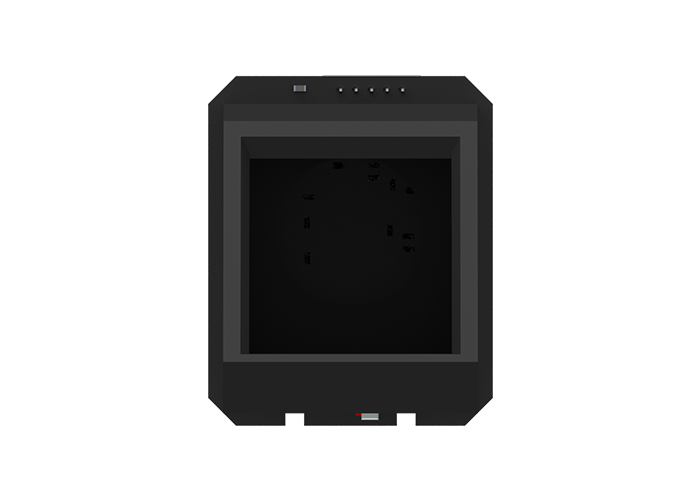

Our MFS100V2 Module

MFS100 V2 offers secure, error-free and reliable identification based on unique fingerprint biometric technology. MFS100 V2 can be used for authentication, identification and verification of a person. Our fingerprint module is unique in its own way that offers high-performance, accuracy and robustness.

Parameters Specification
Fingerprint Sensor: Optical Scratch Free Sensor
Image Resolution: 500 DPI +/- 5 %
Platen Size: 16 mm x 18.2 mm
Active Platen Size: 16 mm x 18 mm
Image Size: 316 x 354 Pixels
Image Grayscale: 256 (8 - Bit Gray Level)
Image Capture Speed (Continuous): 10 FPS
Maximum Acquisition Time (Placement to Template): < 2 sec
Light Source: RED LED
Approx Dimensions (L x W x H): 28.5 x 23 x 62 mm
Approx Weight: 0.025 Kg
Parameters Specification
Operating Voltage: 5V +/- 5% (USB Powered Device)
Operating Current (max): 75 mA
Stand by Current (max): 36 mA
Interface: USB 2.0 (Std/OTG Supported)
Parameters Specification
Operating Temperature: 0 to 45 degC
Storage Temperature: 0 to 50 degC
Humidity (Operating / Storage): < 90% RH, Non-condensing
Parameters Specification
Biometric Data Interchange Format: ISO 19794-2 for minutiae & ISO 19794-4 for Image Template
Environmental, Health and Safety: RoHS Certification
BIS: IS 13252 (Part 1)
Safety: IEC60950
EMI / EMC Compliance: CE & FCC Class A
*FBI PIV Certification: Compliance
*STQC Certification: Yes
IP Rating: IP54
Device Driver: WHQL Certified with Unique Serial Number
OS Supports: Win XP, Win 7, Linux (32 bit & 64 bit)
*Applied for certification
