Products Fingerprint Sensors MOXA7E

FBI FAP60 & STQC Certified

MOXA7E Biometric Enrollment Device

Rugged portable enrollment device combining a FBI FAP60 certified slap scanner with 4G LTE, Wi-Fi, GPS, and a 7-inch Android touchscreen - built for large-scale field identity programs.

Aadhaar / UID National ID Voter Registration Border Security Law Enforcement Bank KYC

Get a Quote Download PDF

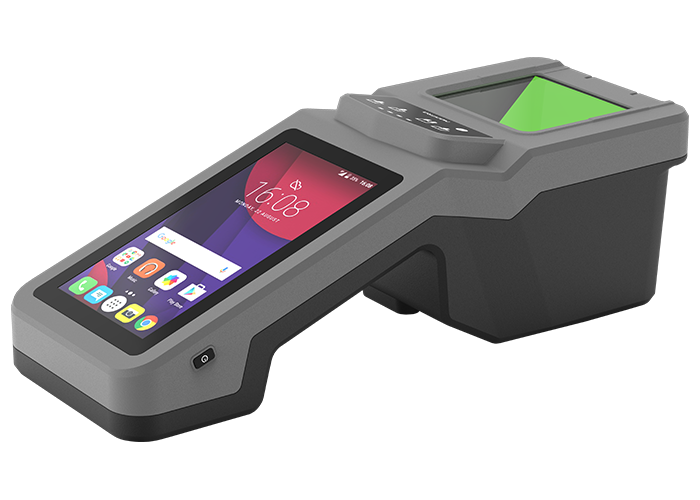

Mantra MOXA7E Fingerprint Enrollment Device

FBI FAP60 Certified

500 DPI Resolution

Android GMS Certified

Key Highlights

Field-Ready Biometric Enrollment Power

MOXA7E combines a certified ten-print slap scanner with a fully connected Android tablet - delivering complete enrollment capability anywhere.

500 DPI | 4-4-2 Capture

FBI FAP60 Certified Slap Scanner

Integrated optical scratch-free sensor captures flat four fingers and two thumbs at 500 DPI meeting FBI IAFIS standards.

4G LTE | Wi-Fi | GPS

All-Network Connectivity

4G LTE, Dual-Band Wi-Fi, Bluetooth 5.0, and GPS/AGPS - fully connected for urban or remote field scenarios.

1024*600 IPS | GMS

7-Inch Android Touchscreen

Scratch-resistant capacitive multi-touch IPS display running GMS Certified Android OS for intuitive workflows.

4GB RAM | 32GB Storage

Powerful Quad-Core Processor

ARM Cortex A53 Quad-Core at 2.0 GHz handles heavy biometric processing without lag - expandable to 256GB.

High-Capacity Pack

Full-Day Battery Life

High-capacity battery sustains a full working day of continuous enrollment operations without needing a recharge.

STQC | BIS | IP65

IP65 Rated & Multi-Certified

Fully sealed enclosure withstands dust and water. CE, FCC, RoHS, and STQC certified for government programs.

Identity Management

One Device. Complete Enrollment Solution.

Engineered for high-throughput mobile identity programs across all sectors.

Optical Sensor

500 DPI

1% accuracy capturing 1600*1500 px images with 256 gray levels.

Processor

2.0 GHz

Quad-Core ARM Cortex A53 for rapid fingerprint processing.

Ruggedness

IP65

Dust and water resistant enclosure for extreme environment deployments.

Operator Screen

7" IPS

Capacitive multi-touch with 16M colors for intuitive UI.

Networking

4G LTE

Combined with Dual-Band Wi-Fi and Bluetooth 5.0 for constant sync.

Discover Our Solutions

Applications & Use Cases

MOXA7E powers mobile identity programs across government, civil registration and law enforcement.

Government | Citizen ID

Technical Details

Complete technical specifications for system integrators and procurement teams.

Hardware & System

CPU

ARM Cortex A53 2.0 GHz Quad-Core

Memory

4GB RAM + 32GB eMMC

Expandable Storage

Micro SD up to 256GB

Display

7" IPS LCD, 1024*600 Pixels

Operating System

GMS Certified Android OS

Weight

~2.2 kg

Fingerprint Sensor

Sensor Type

Optical Scratch-Free Sensor

Resolution

500 DPI 1%

Capturing Format

Flat Four Fingers & Two Thumbs (4-4-2)

Platen Area

3.2 * 3.0 in. (81.2 * 76.2 mm)

Capture Mode

Auto Capture with NIST Quality Check

Hardness

9H Compliant (ASTM D3363)

Interfaces

Network

4G FDD LTE / 3G WCDMA / 2G GSM

Wireless

Wi-Fi IEEE 802.11 a/b/g/n/ac

Bluetooth

BT & BLE 5.0

GPS

16-Channel NMEA, AGPS Supported

Ethernet

10/100 Mbps Built-in

SIM Slots

2* Micro SIM

Power & Battery

Battery

High-Capacity Rechargeable Pack

Life

Full working day of continuous operation

Ingress Protection

IP65 (Dust & Water Resistant)
