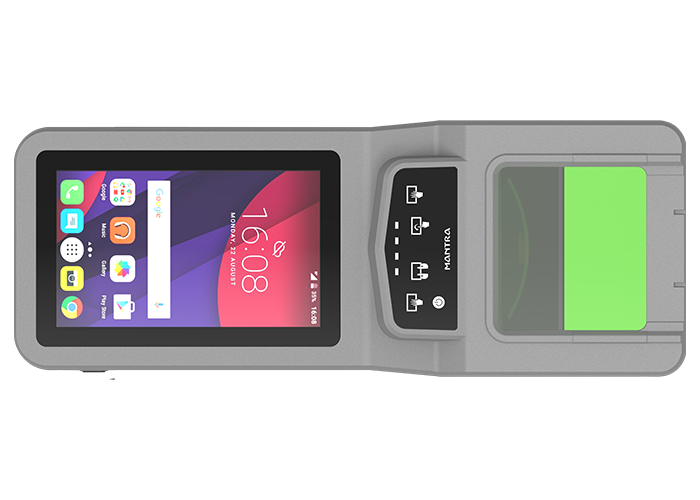

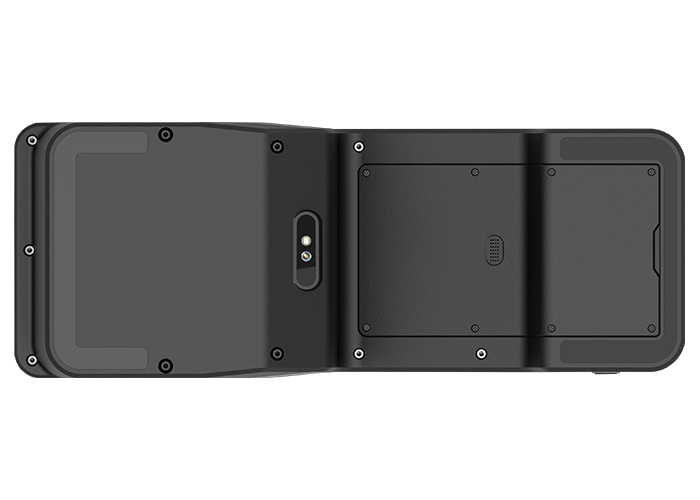

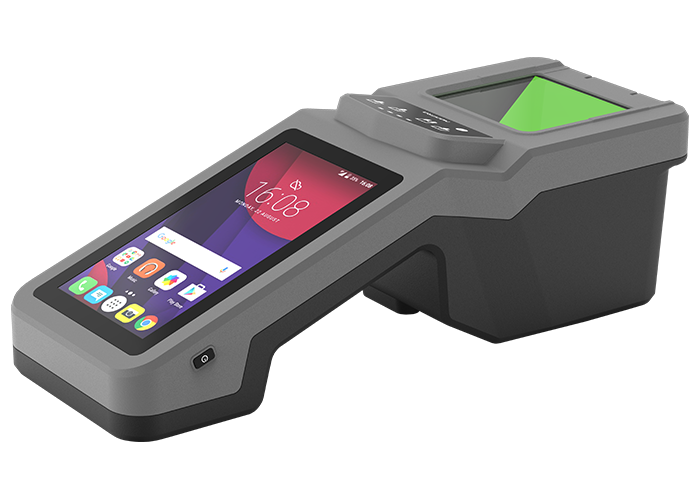

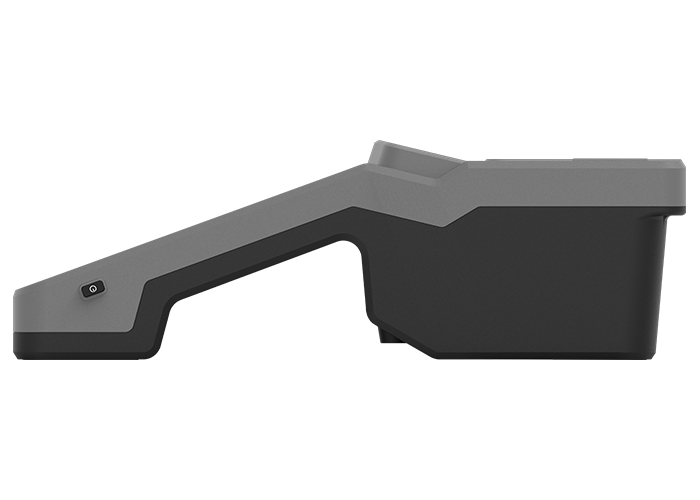

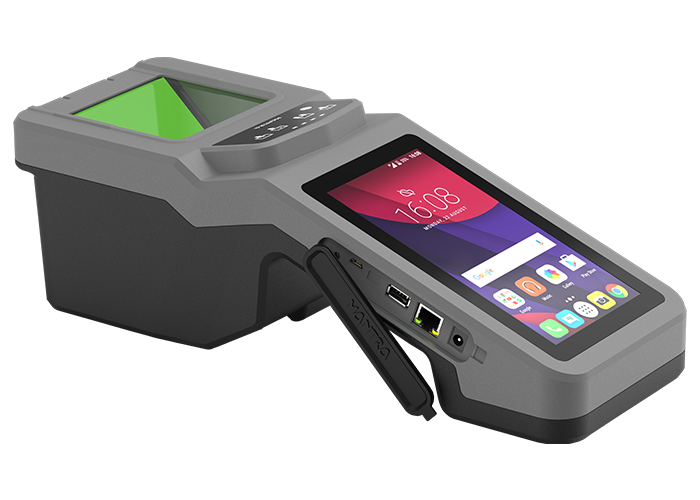

MOXA7E Portable Enrollment Fingerprint Device

MOXA7E is a mobile multi fingerprint scanner with an intuitive ergonomic design. The fingerprint reader is suitable for use in various sectors and applications as it is compact and powered by sophisticated biometric technology from Mantra Softech.

Get In Touch

Our MOXA7E

The MOXA7E is an FBI FAP 60 certified fingerprint scanner built for the toughest and most challenging identity management projects. The portable unit's 1.5GHz Quad-Core processor, 2GB RAM, 16GB flash memory and long battery life make it ideal for remote and all possible largescale identity management applications.

The MOXA7E employs the most advanced optical technology that allows high-speed fingerprint image capturing and seamless image processing, ensuring the best image quality for slap fingerprints. And it features a state-of-the-art, scratch-resistant touch screen interface powered by Android OS.

This device is an absolutely ideal choice for all your civil, criminal identification, and border security applications, such as voter registration, national ID enrollment, applicant background checks, airport security, etc.

Key Highlight Feature: Advanced Fingerprint Scanning Technology

MOXA7E is a state-of-the-art fingerprint tablet based on innovative technology. Its advanced feature ensures high-resolution fingerprint captures, providing unmatched accuracy in biometric enrollment and verification. The scanner is capable of detecting even the most subtle fingerprint details, making it highly effective against fraud.

Additional Innovative Features:

Simple to Carry:

It is portable and lightweight, which makes this device easy to carry anywhere, That is why it can work well in offices and remote areas.

Flexible Connection Options:

It provides seamless connectivity through Wi-Fi, Bluetooth, and LAN networks.

Long-Term Power:

It has a sturdy battery that extends the duration of usage on the field.

Features

Some of the significant features of our advance biometric fingerprint scanner device are listed underneath:-

Operating System
GMS Certified Android OS / Customized GMS Android OS (optional)

Back Camera
8MP AF camera with High brigthness Flash LED

Audio
High-Quality 1W Speaker for Announcements

Ethernet
Ethernet 10/100

Light Weight
One of the few enrolment tablets weighing less than 2.2kg

Security
High security level for captured and/or transmitted data.

Flexibility Quality
Built for harsh conditions & multiconfiguration device

Very High Capacity Battery
long battery storage to manage one-full working day

Specification

Feature exquisite specifications that are designed to address the modern-day requirements of individual identification and authentication.

Hardware & System

CPU :

ARM Cortex A53 @2.0GHz Quad Core Processor

Memory :

4GB RAM + 32GB eMMC

Micro SD Card :

Micro SD slot supporting up to 256 GB memory card

LCD :

7" IPS LCD with resolution (1024 X 600) with 16M colors

Touch :

Scratch Resistant Multi-Point Capacitive Touch Screen

Operating System :

GMS Certified Android OS / Customized Android OS (optional)

Back Camera :

8MP AF camera with High brigthness Flash LED

Audio :

High-Quality 1W Speaker for Announcements

Control Buttons :

1x Power On/Off, 1x Reset Key

Operating / Storage Temperature :

0 Deg - 45 Deg C

Operating Humidity :

10%-90% RH (Non-Condensing)

Dimensions (in mm) :

370 x 141 X 121 mm

Weight :

Approx 2.2Kg ( Depend Upon Configuration )

Certifications :

CE, RoHS, BIS, IP65

Fingerprint Sensor

Fingerprint Sensor Type :

Optical Scratch Free Sensor

Pixel Resolution :

500 DPI +/- 1%

Capturing Format :

Flat Four fingers & Two thumbs

Platen Area :

3.2 x 3.0 Inch (81.2 x 76.2 mm)

Active Platen Area :

3.2 x 3.0 Inch (81.2 x 76.2 mm)

Finger Image Pixels :

1600 x 1500 Pixels

Pixel Depth :

8 Bits/Pixel (256 Gray Level)

Capture mode :

Auto capture with built-in quality check (incorporates NIST quality considerations)

Biometric Data Interchange Format :

ISO 19794-2:2011 for minutiae & ISO 19794-4:2011 for Image Template, WSQ3.1, JPEG2000

Interface :

USB 2.0(High speed), USB-IF Certified

LED Indicators :

Power, Status, and fingerprint image quality

ESD protection :

Contact Discharge: +/- 4kV, Air Discharge: +/- 8kV

Signal to noise ratio :

Both White & Black SNR >= 125

Platen Area Hardness :

9H compliant, Tested as per ASTM D3363

Platen Area Abrasion :

175g, 400 cycles, Abrasion test compliant as per ASTM F 2357

Operating Condition :

Under Direct Sunlight up to 100K LUX

Biometric Data Interchange Format :

ISO/IEC 19794-4:2005 & 2011 for Image Template, WSQ3.1, JPEG2000

Certifications :

CE & FCC Part 15B class A, KC Certified, EN/IEC 62368-1,

IS 13252 (Part 1), UL Certified, STQC Certified,

RoHS, FBI’s IAFIS Appendix-F & Mobile ID FAP60 , IP65

Fingerprint Sensor

Software Features

NIST compliance WSQ compression module

NIST compliance NFIQ Quality check

Segmentation of flats into single fingerprint images

Interfaces

2G GSM/GPRS/EDGE :

850/900/1800/1900

3G WCDMA :

B1/B2/B5/B8

4G FDD :

B1/B3/B5/B7/B8/B38/B40/B41

4G TDD :

All Band

Wi-Fi 2.5GHz & 5.0 GHz :

IEEE 802.11 a/b/g/n/ac with Flex antenna

Ethernet :

Ethernet 10/100 Mbps

Bluetooth :

BT & BLE 5.0 with Flex Antenna

GPS :

16 Channel NMEA Compliant with Flex Antenna, AGPS Supported

SIM Socket :

2 x Micro SIM Slot

DC Jack :

1 x DC Power Input

Micro USB :

1 x Micro USB Port for PC Connection as debug port

SAM Slot (optional) :

2 x SAM Slot (As per ISO7816 standard)

USB :

1 x USB2.0 Type-A

Electrical

Power Adaptor :

Input AC: 90~265V, 50Hz ; Output DC: 5V/3A

Battery Pack :

Li-Ion 9000 mAH Rechargeable & Replaceable Battery
