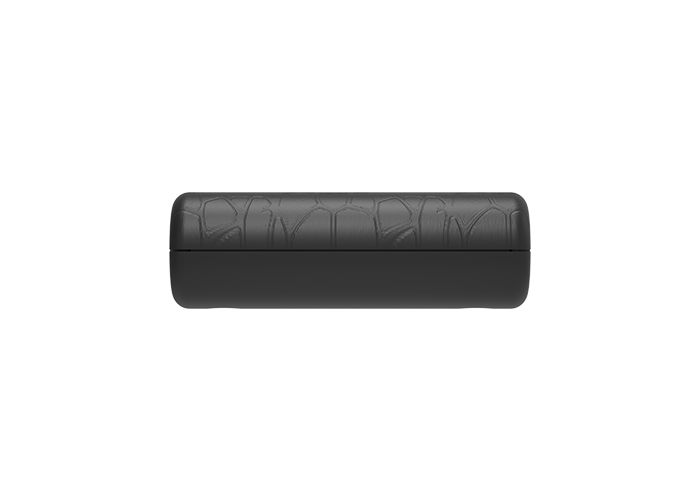

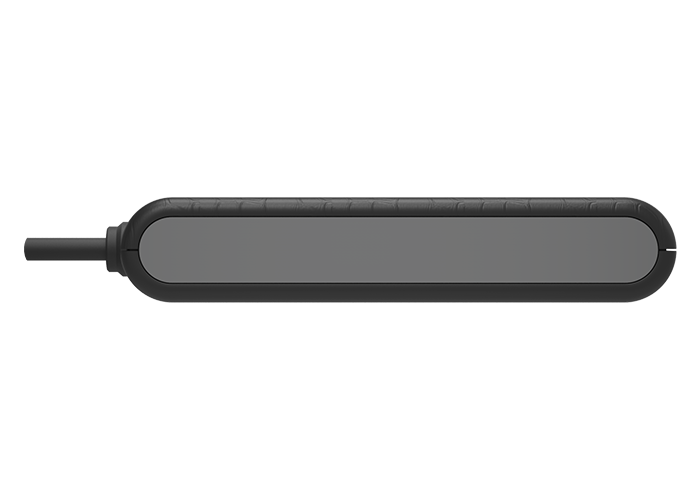

MARC10 Capacitive Fingerprint Scanner

MARC10 is a secure and reliable fingerprint scanner (OEM Module / Sensor: MOPvC10) engineered for precise identification, verification, and authentication. Capturing high-resolution images with an advanced capacitive sensor, it supports MINEX-compliant embedded extraction and is perfect for tight-space installations.

Access Control Identity Verification Authentication Embedded OEM Module

Get a Quote Download PDF

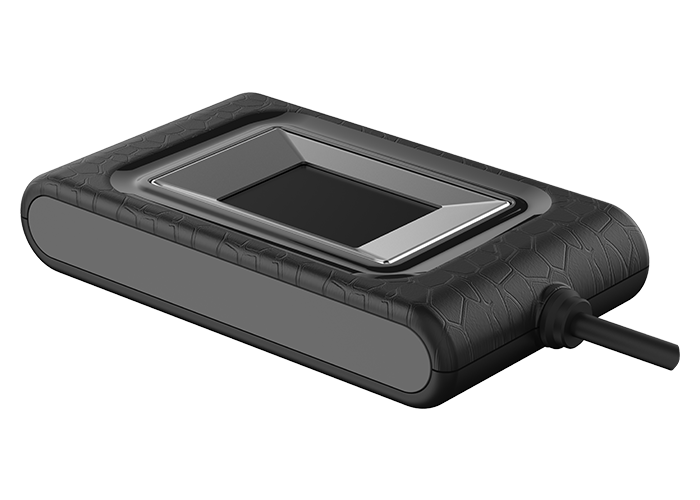

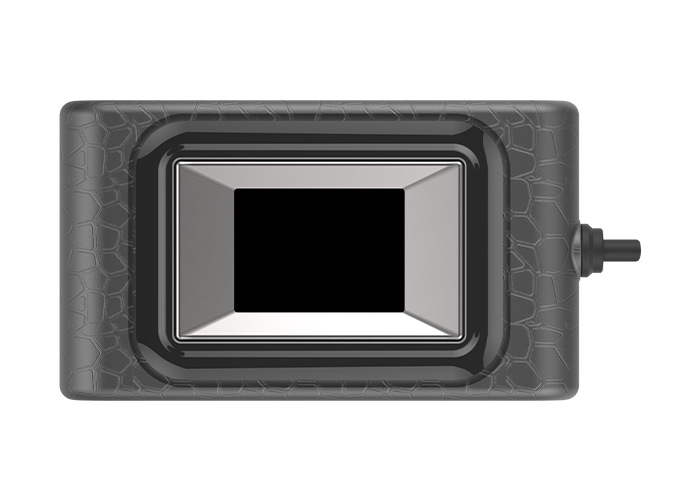

Mantra MARC10 Capacitive Fingerprint Scanner

500 DPI Capacitive Sensor

IP54 / IP67 Device & Platen Rating

Key Highlights

Compact Precision Capacitive Technology

MARC10 delivers advanced capacitive fingerprint sensing in a slick 58.1*33.3*12mm footprint - combining scratch-resistant surface with FBI PIV image quality.

Advanced FAP10 Sensor

500 DPI | 256*360px | 12.8*18mm

Exceptional ridge detail capture from a 12.8*18mm platen area. Delivers high-quality images even from fingers with worn, aged, or dry skin conditions, ensuring reliable enrollment and verification.

FBI PIV & Mobile ID

IP54 & IP67 | ESD 15KV | RoHS

Guaranteed image quality that meets federal identity standards. Features an IP54-rated device shell with an IP67 water and dust protected platen area for exceptional durability in various environments.

Fast Acquisition

Auto Finger Detection | < 2s

NIST-quality-aware auto capture completes the placement-to-template cycle in under 2 seconds. Built-in quality checking rejects poor images before they reach the backend.

OEM Integration Ready

USB 2.0 | SPI | UART | FPC Option

Ultra-slim MOPvC10 OEM module (35*23*5mm) fits inside thin terminals and kiosk panels. Supports multiple protocols (USB, SPI, UART) and wire-to-board/FPC connector interfaces.

Multi-OS & SDK Support

Windows 7/10/11 | Linux | Android

WHQL-certified drivers for Windows 7, 10 & 11, plus full support for Linux and Android. Supports MORFIN_AUTH 1:1 and MORFIN_SEARCH 1:N matching SDKs.

High Durability Surface

7H Hardness | 5B Cross Cut

7H scratch-resistant capacitive surface maintains consistent image quality across 1 million scans. Engineered with 5B cross cut adhesion for extreme ruggedness.

Advanced Technology

Built for Space-Constrained Secure Installations

MARC10

Compact FAP10 Scanner & MOPvC10 OEM Module

Image Quality

FBI PIV

Mobile ID FAP10 · 500 DPI · MINEX Compliant

Protection

IP54 / 67

IP54 Device Level · IP67 Platen Protection

Performance

< 2s

Auto Capture & NIST Quality Checking

Interfaces

USB/SPI/UART

Flexible Protocol & Connector Formats

Form Factor

Miniature

Device: 58.1×33.3×12mm · Module: 35×23×5mm

Standards & Compliance

WHQL

ESD 15KV · CE, FCC Part 15B Class A · RoHS · BIS

Discover Our Solutions

Ideal for Every Authentication Use Case

MARC10's compact form and high precision make it ideal for space-constrained deployments.

Access Control

Enterprise Security Solutions

Miniaturized capacitive sensor embeds directly into turnstiles and door locks for secure, spoof-resistant fingerprint entry.

Identity & KYC

Citizen Identification

Embedded in government kiosks for real-time Aadhaar UIDAI verification, eKYC, and citizen authentication.

HR & Operations

Biometric Attendance System

High-speed identification and low FAR makes MARC10 suitable for reliable employee attendance terminals.

Specifications

Technical Details

Full specifications for procurement, integrators, and IT managers.

Sensor Characteristics

Fingerprint Sensor Type

FAP10 Capacitive Sensor

Pixel Resolution

500 DPI ± 2%

Platen Size

12.8 mm x 18 mm

Image Size

256 x 360 Pixels

Image Grayscale

256 Gray Level (8-Bit Image)

Max Acquisition Time

< 2 Sec (Placement to Template)

FRR & FAR

< 0.1% & < 0.001%

Device Dimension (L x W x H)

58.1 mm x 33.3 mm x 12 mm

Module Dimension (L x W x H)

35 mm x 23 mm x 5 mm

Approx. Weight

0.040 kg (40g)

Capture Mode

Auto Finger detection functionality & Auto capture with built-in quality check (Incorporates NIST quality considerations)

Latent Finger Detection

Supported

MTBF

50,000 Hours

Wear & Tear Cycle

1 Million scans

Cross Cut

Surface Hardness

SALT Spray Test

IEC 60068-2-11 / IS 9844 / ASTM G 85

Interface Details

Protocol

USB 2.0, SPI (Up to 24 Mbps)*, UART (Baud Rate: Default 9600, Up to 115200)*

Connector

Product: USB Type-A Male, Module: Wire to Board**

Footnotes

* UART & SPI interface is available in sensor module only.
** FPC Connector available for USB, UART & SPI interface.

Electrical Characteristics

Operating Voltage

+5.0V ± 5% (USB or UART Powered Device) / +3.3V ± 3% (Only for SPI Powered Device)

Operating Current

< 50 mA

Standby Current

< 30 mA

Environmental

Operating Temp.

-10°C to +70°C

Storage Temp.

-20°C to +85°C

Humidity (Operating/Storage)

< 90% RH, Non-Condensing

Standards & Compliance

Biometric Data Interchange Format

ISO 19794-2 : 2005 & 2011 and ANSI 378, ISO 19794-4 : 2005 & 2011, WSQ3.1

EMI / EMC Compliance

CE & FCC Part 15B class A

ESD Protection

Contact Discharge: ± 8kV, Air Discharge: ± 15kV

Safety

EN/IEC 62368-1, IS 13252 (Part 1)

Environmental Health & Safety

RoHS Compliant

Image Quality

FBI PIV Certification, Mobile-ID FAP10

IP Rating

IP54 (Device Level), IP67 (Platen Area)

Device Driver

WHQL certified driver

System Requirements

Operating System

Windows 7, 10 & 11, Android & Linux

Standard Software/SDK

1:1 Matching: MORFIN_AUTH
1:N Matching: MORFIN_SEARCH

* UART & SPI interface is available in sensor module only

** FPC Connector available for USB, UART & SPI interface
