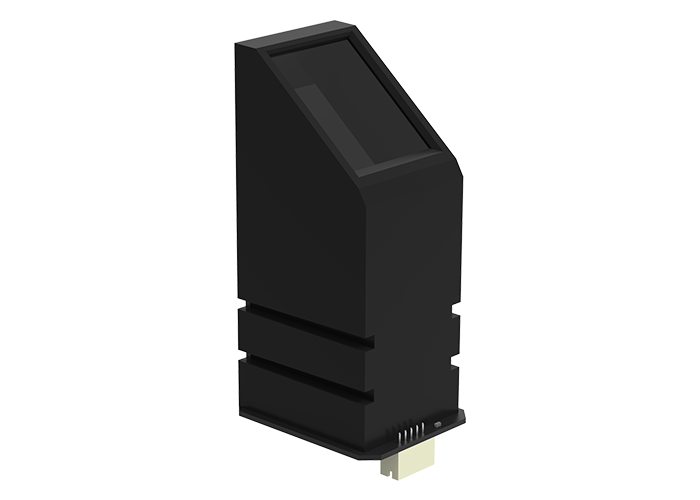

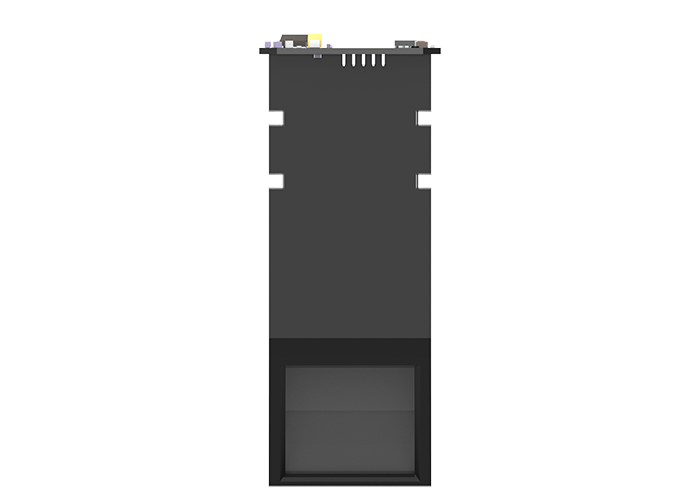

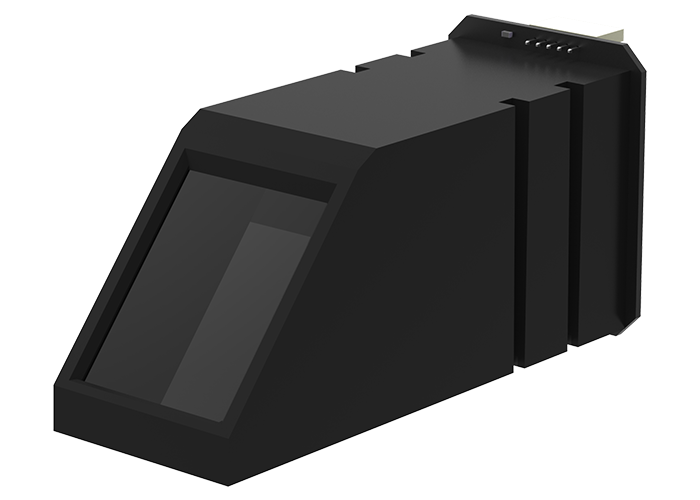

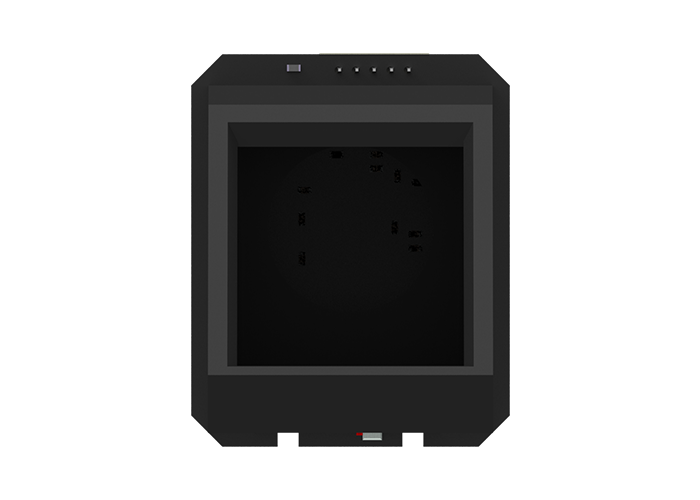

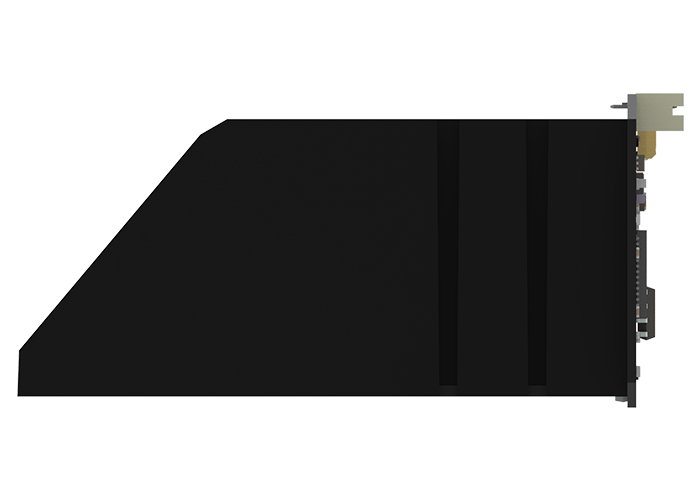

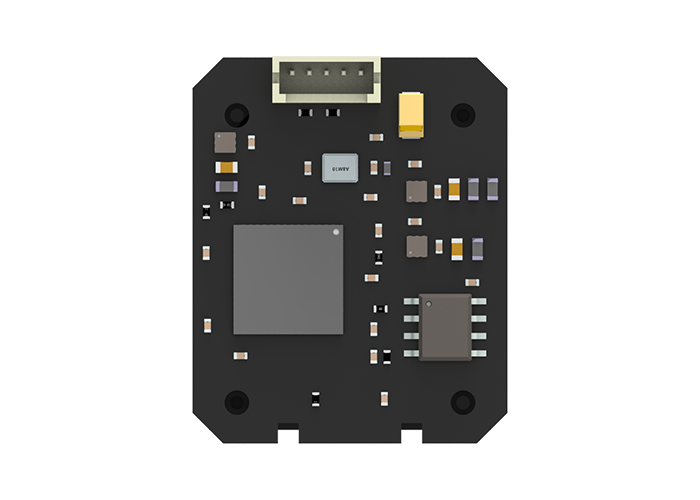

MFS500 Module : MOPv2.0

MFS500 is a high-quality fingerprint scanner utilized for accurate fingerprint authentication process.

Get In Touch Download Brochure

Our MFS500 Module

Our MFS500 module is accurate, safe and reliable for verification, identification and authentication of an individual. MFS500 is FAP compliant which captures the fingerprint image of an individual in a faster and reliable manner. Our fingerprint recognition module is elegantly designed to record fingerprint impressions of a person to identify and authenticate him/her before accessing any premises or resources.

Parameters Specification
Fingerprint Sensor: Optical Scratch Free Sensor
Image Resolution: 500 +/-10 DPI
Platen Size: 16.4 mm x 18 mm
Active Platen Size: 15 mm x 18 mm
Image Size: 296 x 354 Pixels
Image Grayscale: 256 (8 - Bit Gray Level)
Image Capture Speed (Continuous): 10 FPS
Maximum Acquisition Time (Placement to Template): < 2 sec
Light Source: RED LED
Approx Dimensions (L x W x H): 29 x 23 x 61
Approx Weight: 0.026 Kg
Parameters Specification
Operating Voltage: 5V +/- 5% (USB Powered Device)
Operating Current (max): 80 mA
Stand by Current (max): 40 mA
Interface: USB 2.0 (Std/OTG Supported)
Parameters Specification
Operating Temperature: 0 to 50 degC
Storage Temperature: 0 to 50 degC
Humidity (Operating / Storage): < 90% RH, Non-condensing
Parameters Specification
Biometric Data Interchange Format: ISO 19794-2 for minutiae & ISO 19794-4 for Image Template
Environmental, Health and Safety: RoHS Certification
BIS: IS 13252 (Part 1)
Safety: IEC60950
EMI / EMC Compliance: CE & FCC Class A
*FBI PIV Certification: Compliance
*STQC Certification: Yes
IP Rating: IP54
Device Driver: WHQL Certified with Unique Serial Number
OS Supports: Win XP, Win 7, Linux (32 bit & 64 bit)
*Applied for certification
