IRIS Scanner

Iris recognition is an automated method of biometric identification that uses mathematical pattern recognition techniques on video images of one or both of the irises of an individual’s eyes. IRIS recognition is widely used for identity verification or identification for high security projects all across the world.

Get In Touch Download Brochure


Until now IRIS recognition was used in conjunction with computer or any high end embedded system. As mobile technology is used almost by everyone and there is a continuous requirement of security on mobile phones, Mantra has identified that IRIS recognition can be used effectively with mobile phones and tablets.

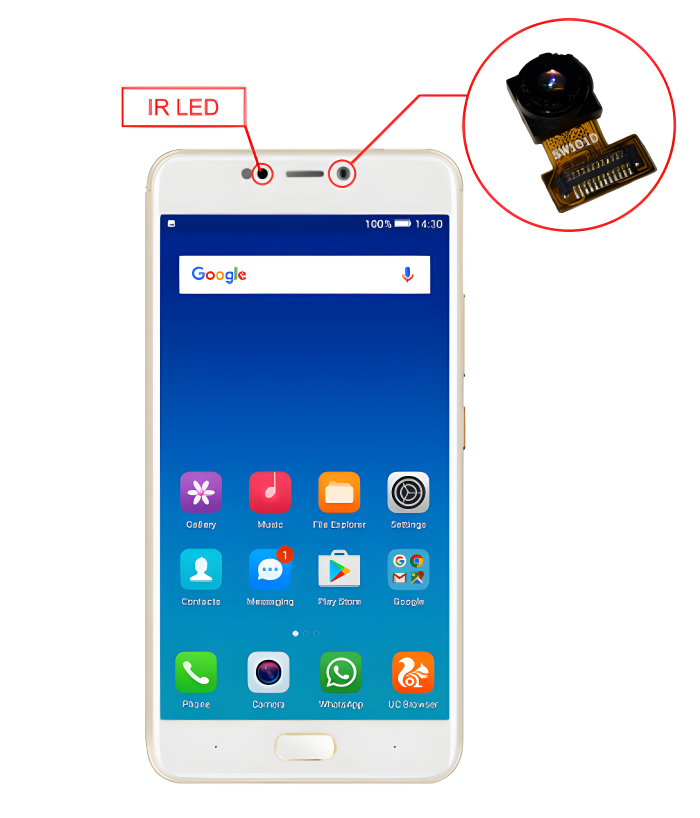

MobiIRIS is India’s first mobile IRIS module for mobile users. MobiIRIS is used with Mantra's world class mobile enabled IRIS recognition SDK to equip any mobile phone/tablet with IRIS recognition technology.

MobilIRIS module can be integrated with any mobile platform with the Android operating system. This comes with 5 critical components (Sensor, Extractor, LED Illuminator, Lens & Image Acquisition Display & ControlSW), which will be approved by UIDAI/STQC.

Features icon1Fast Recognition : MobiIRIS gives recognition of IRIS within 1 sec. It is faster than unlocking the phone by pattern or passkey.

Features icon2User friendly : MobiIRIS scan eyes from 15mm-22mm. Long distance gives required flexibility and user need not adjust according to the camera.

Features icon3Secured : MobiIRIS is far more secured than traditional fingerprint, pattern, key or Password.

Features icon4Fastest Integration : MobiIRIS gives fastest integration as technology is ready with 5 critical components.

Features icon5Exception Friendly : MobiIRIS can successfully capture and Match occluded images, images with pupil dilation, motion blur etc.

Features icon6Higher Security : IRIS recognition is hard to spoof as inbuilt spoof detection software will detect spoof in most of the cases.


Application icon1Fastest integration with ready to use library and hardware reference design

Application icon2Long Range distance

Application icon3Hard to spoof

Application icon4Match occluded images, images with pupil dilation, motion blur

Application icon5Easy to use

Product Detail
Spatial resolution60% at LP/mm
Pixel Resolution13 pixels/mm
Image MarginsLeft & right=0.7 X iris radius. Top & bottom=0.3 X iris radius
Imaging wavelength700-900 nm
Pixel Depth8 bits/pixel
Scan TypeProgressive
Output ImageIMAGE_TYPE_CROPPED_AND_MASKED with JPEG2000 compression; complied with the ISO standard for Iris Image Record (IIR)
Capture ModeAuto capture with built-in quality check
Capture time3 Sec
Capture Distance (in mm)150-210 mm
Safety (optical)Exempt Group per IEC 63471:2006-07
Operational performanceFRR < 1% at FAR of 1 in 1,00,000 with images conforming to IMAGE_TYPE_CROPPED_AND_MASKED of size 3.5KB
Occupational health SafetyRoHS
Radiated EmissionFCC part 15B/IEC:CISPR 22 CLASS B
Capture MethodDual IRIS

Talk to Mantra's Professional for bulk order.

Every client has unique requirement. Working together we’ll discover the right solution which fits in your budget to reach desire goal.
